GEA presents next generation batch freeze dryers for food applications

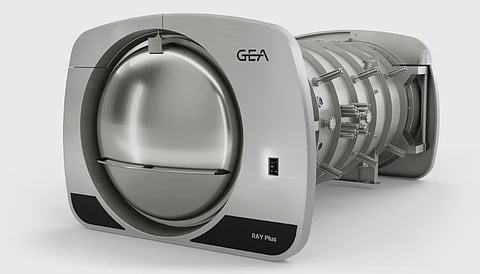

GEA, a global leader in food and dairy processing solutions, launches its next generation batch freeze dryers, the RAY Plus series. Building on 70 years of freeze dryer design experience, the new RAY Plus series offers advanced technology that delivers benefits in terms of energy efficiency and hygiene, providing a more flexible and efficient solution for the food industry.

Freeze-drying is a highly effective method to preserve a wide range of fresh foods, from fruit and vegetables, pet food, meat and seafood to probiotics, convenience foods, instant coffee and ready meals. Health-conscious consumers value the convenience of freeze-dried smoothies and snacks, which have an extended refrigerator-free shelf life and retain their nutritional quality, taste, texture and appearance.

Flexible and Energy-Efficient Solutions

The RAY Plus series offers a cabinet size range of 45m² to 180m², with heating plates in layers of 10, 15, or 20, and condensers on both sides. These cabinets can be combined in groups of up to six, sharing a common control and support system to improve operational efficiency and ensure even load distribution across the production floor.

In designing the GEA RAY Plus freeze dryer GEA developed a proprietary Computational Fluid Dynamic (CFD) model. The model precisely calculates the flow dynamics and pressure losses under deep vacuum within the freeze dryer cabinet, ensuring optimal performance and efficiency. The result is a nearly 50 percent reduction in pressure drop within the cabinet compared to previous models, achieved by installing vapor traps on both sides of the cabinet and allowing vapor to enter from both the top and bottom.

The new series can be integrated with existing RAY freeze dryers and connected to various cooling and heating solutions, including the latest heat pump technologies. Operating at lower temperatures with higher batch loads, the RAY Plus achieves the same daily capacity with reduced energy consumption. The system’s flexibility allows for high sublimation rates (>3 kg/m²h) or higher capacity at low vacuum (<0,15mBar) with standard refrigeration solutions.

From the RAY125 Plus model onward, the freeze dryers are equipped with four condensers (three in operation, one in de-icing), providing a larger condensing surface and enabling operations at a condenser temperature approximately 6 °C warmer. This configuration also allows for operation at lower vacuum levels with higher sublimation rates.
